Basic Info.
Model NO.
CTL69
Gross Weight
65kgs
Material for Case
ABS
Cryo Handle Qty
Two PCS Working at The Same Time

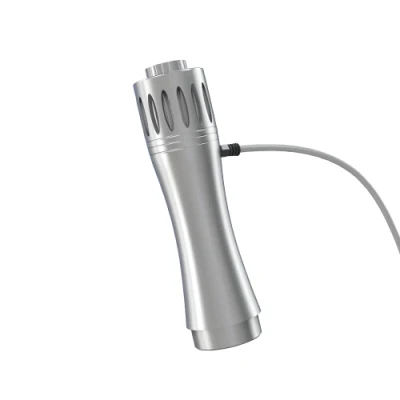

Shock Wave Energy
60mj~185ml
Voltage
110/220VAC 50 60Hz

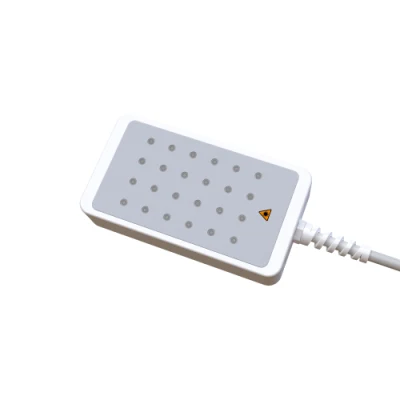

Laser Pad
4 Big Bads, 2 Small Pad
Laser Lamp
104 PCS, 24 Diode/ Big Pad, 4 Diode /Small Pad
Pad Quatity
4 Big Pad, 2 Small Pad
Waveleght and Energy
660nm&980nm, 130MW~350nw(Pluse)
The Frequency of Three Polar RF
5MHz
The Frequency of Cavitation
35-40kHz
Cooling System
9L Pure Water +Air Cooling+ Efective Radiator.
Transport Package
Wood Package
Specification
94*94*66cm
Trademark
BEIR
Origin
Guangzhou
HS Code
90189090
Production Capacity
500 PCS/Month
Product Description
cryolipolisys cryo fat reduce machine criotherapy shock wave vacuum cavitation system
Product Description
Our machine can help you
Working Theory
Our machine can help you
Working Theory
Machine Instrution
Parameters
| Voltage | 220v/110v; 50Hz-60Hz |
| Screen | 12inch touch screen |
| Mitsubishi classification | Electrical Class II, Type B applied part |
| Pads | 6 pcs,4 big pads and 2 small pads |
| Laser type | low intensity diode laser |
| Laser source | Mitsubishi diode laser ML101J27 |
| Mitsubishi Wave length | dual wavelength, 660nm and 980nm |
| Laser energy | 130mW~350mW (pulse) |
| Quantities of lamps | 104 pcs |
| Mitsubishi Ingress Rating | IPXO |
| Lipolaser cooling requirements | Air cooled |
| Cryo handles | 2pcs |
| Cooling device output temperature | 5ºC~ -16ºC |
| Cooling device output pressure | 0-100Kpa |
| Cooling liquid | pure water, with 9L |
| Default working time | 0-60 minutes |
| Power consumption | ≤1000W |
| Shock wave energy | 60mj-185mj |
| Cavitation | 35-40KHz |
| RF frequency | 5MHz |
| Vacuum output pressure | 0-100Kpa |
Application

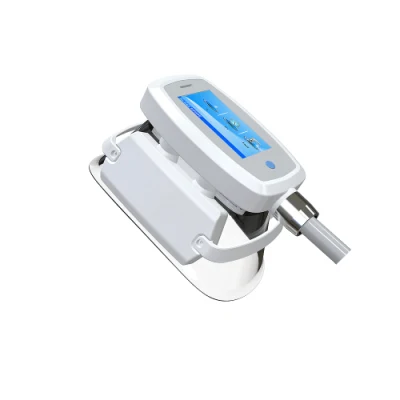

Cryo handles features:
| 1.Three different size of handles:large:25*12cm,medium:20*8cm,small:12*6cm |
| 2. Real vacuum pressure and cryo tempuerature sensor on handle display |
| 3. Softer pipes with beter material,cable will be aso long as 2.5m |
| 4. Start/stop button on handle(as well as machine display) |
| 5. Medical use silicon |
| 6. Semiconductor ceramic refrigerate pads, low temperature can reach to -16C |
Our company
Beir, a dynamic company, founded in 2005, is the top suppler of beauty equipment in Guangzhou, China. Currently, the impressive products on market in cluding HFU, Criolipolisis, Lipolaser, pressotherapy, IPL, E-Light, Diode Laser, ND YAG Laser, Vacuum Cavitation RF and Derma Roller etc. The main market in cludes Europe( with medical CE,ROHS), North America and Latin -America.
